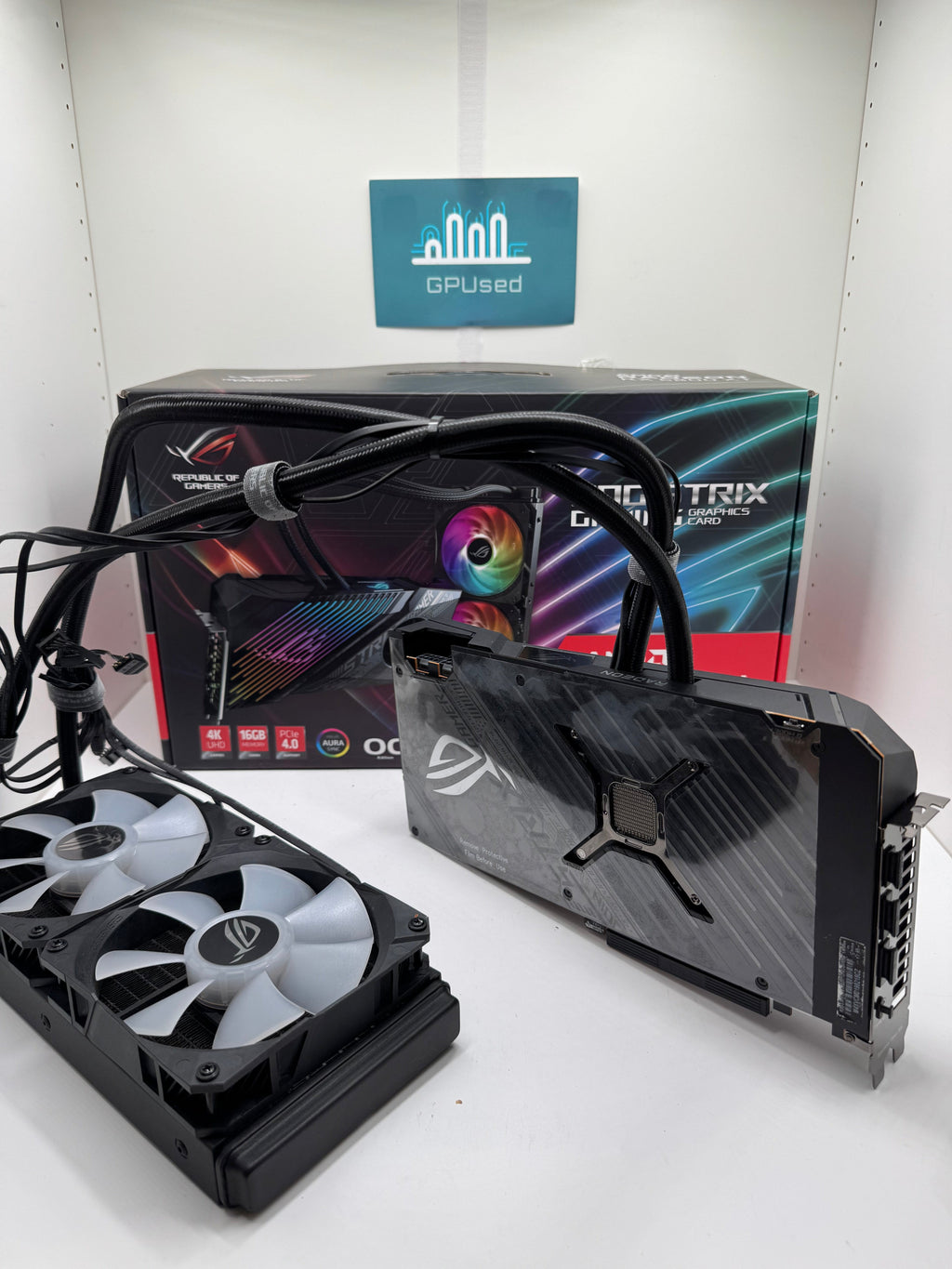

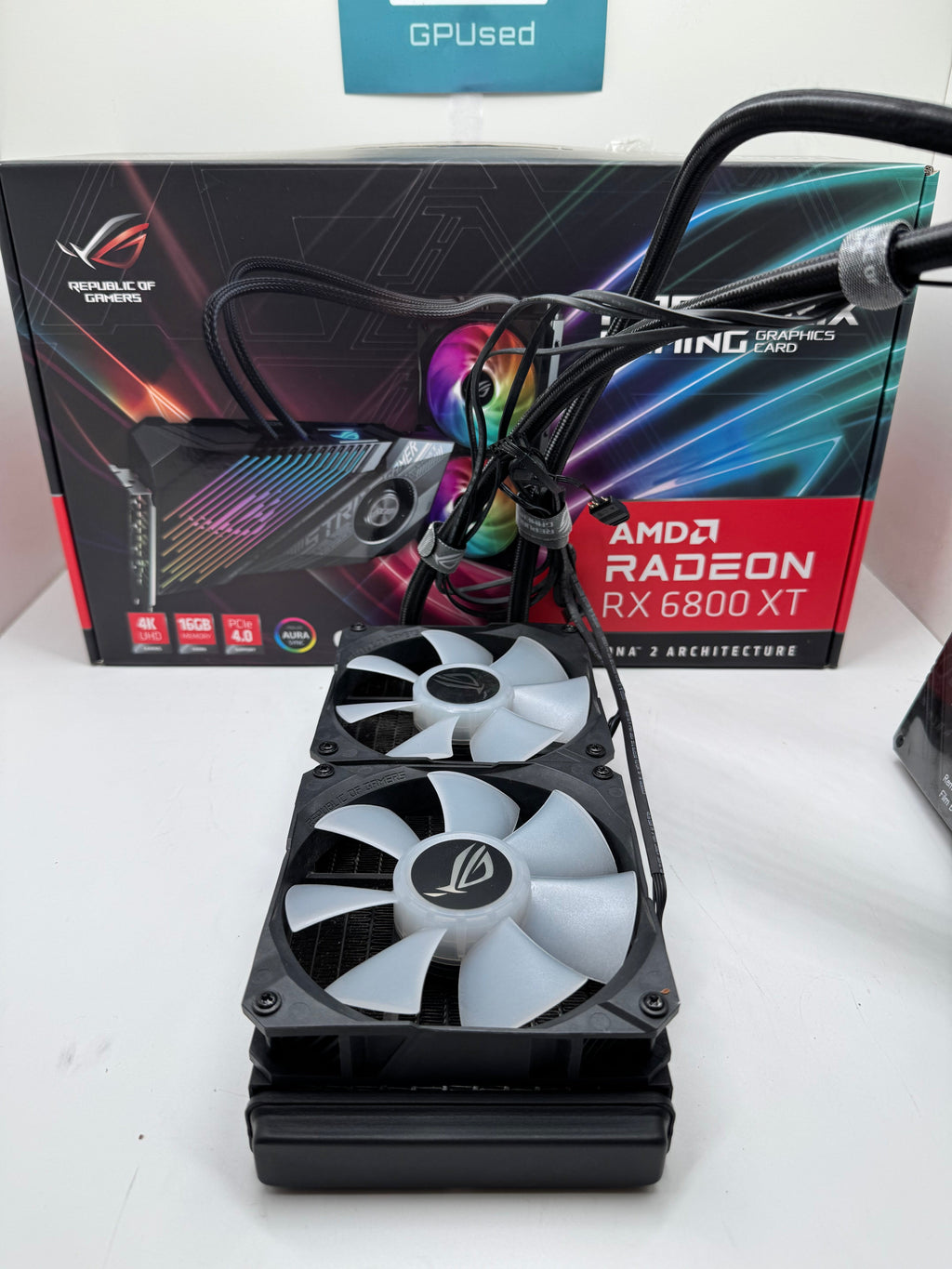

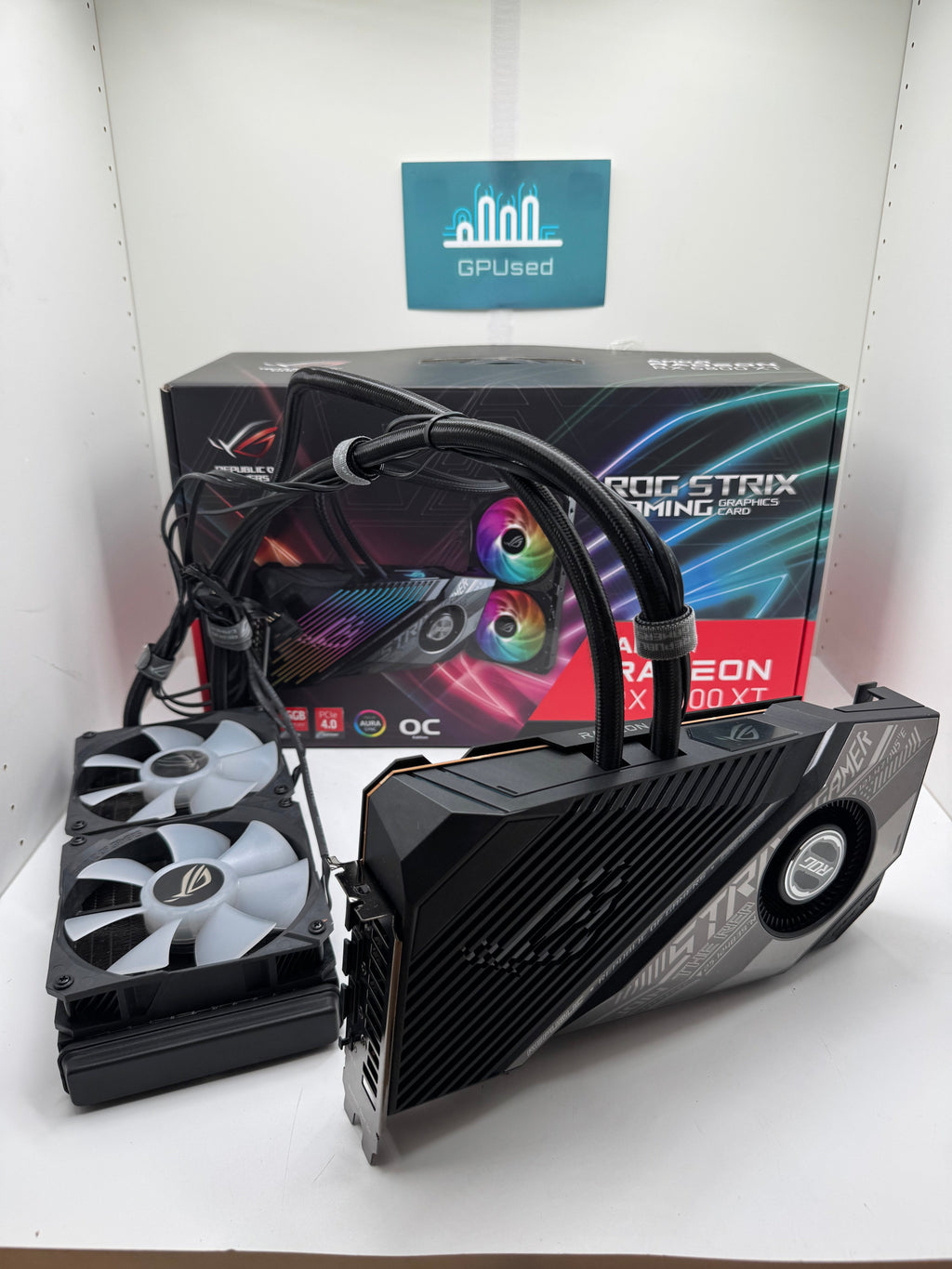

ASUS AMD Radeon RX 6800XT Rog Strix LC Watercooled 16GB GDDR6 - A - Premium Edition
ASUS AMD Radeon RX 6800XT Rog Strix LC Watercooled 16GB GDDR6 - A - Premium Edition
Product Description -
Summary - Mint condition, with the original box. Ready to go! Specifications below -
Graphics Processor
- GPU Name
- Navi 21
- GPU Variant
- Navi 21 XT
(215-121000177)
- Architecture
- RDNA 2.0
- Foundry
- TSMC
- Process Size
- 7 nm
- Transistors
- 26,800 million
- Density
- 51.5M / mm²
- Die Size
- 520 mm²
- Chip Package
- BGA-2425
Graphics Card
Clock Speeds
- Base Clock
-
1825 MHz
1900 MHz (+4%)
- Game Clock
-
2015 MHz
2090 MHz (+4%)
- Boost Clock
-
2250 MHz
2340 MHz (+4%)
- Memory Clock
- 2000 MHz
16 Gbps effective
Memory
- Memory Size
- 16 GB
- Memory Type
- GDDR6
- Memory Bus
- 256 bit
- Bandwidth
- 512.0 GB/s
Render Config
- Shading Units
- 4608
- TMUs
- 288
- ROPs
- 128
- Compute Units
- 72
- RT Cores
- 72
- L0 Cache
- 32 KB per WGP
- L1 Cache
- 128 KB per Array
- L2 Cache
- 4 MB
- L3 Cache
- 128 MB
Theoretical Performance
- Pixel Rate
-
288.0 GPixel/s
299.5 GPixel/s
- Texture Rate
-
648.0 GTexel/s
673.9 GTexel/s
- FP16 (half)
-
41.47 TFLOPS
43.13 TFLOPS (2:1)
- FP32 (float)
-
20.74 TFLOPS
21.57 TFLOPS
- FP64 (double)
-
1,296 GFLOPS
1,348 GFLOPS (1:16)
Board Design
- Slot Width
-
Dual-slot
Triple-slot
- Length
-
267 mm
340 mm10.5 inches
13.4 inches
- Width
-
120 mm
139 mm4.7 inches
5.5 inches
- Height
-
50 mm
57 mm2 inches
2.2 inches
- TDP
- 300 W
- Suggested PSU
- 700 W

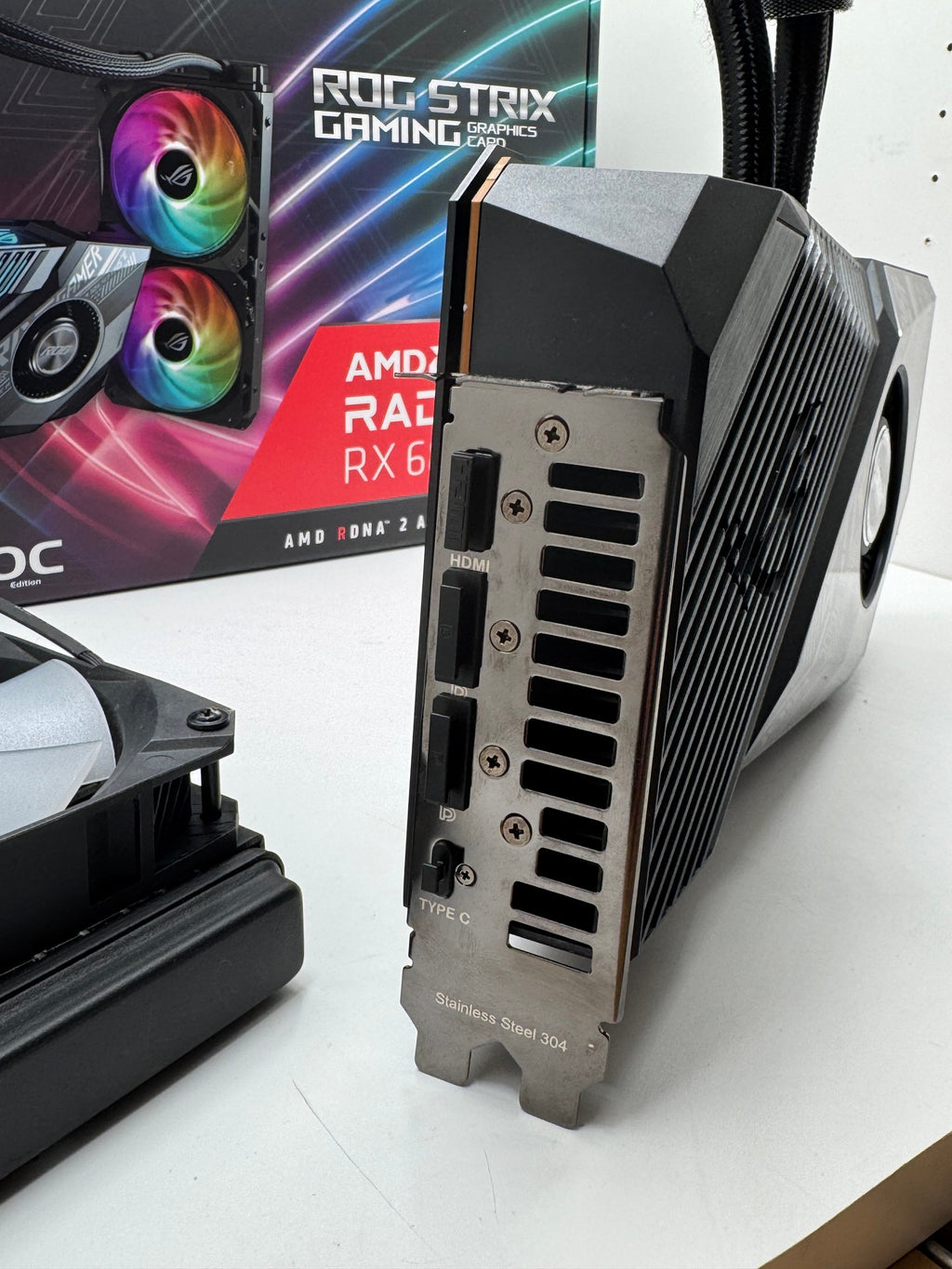

- Outputs
-
1x HDMI 2.1
2x DisplayPort 1.4a
1x USB Type-C
1x HDMI 2.1
3x DisplayPort 1.4a

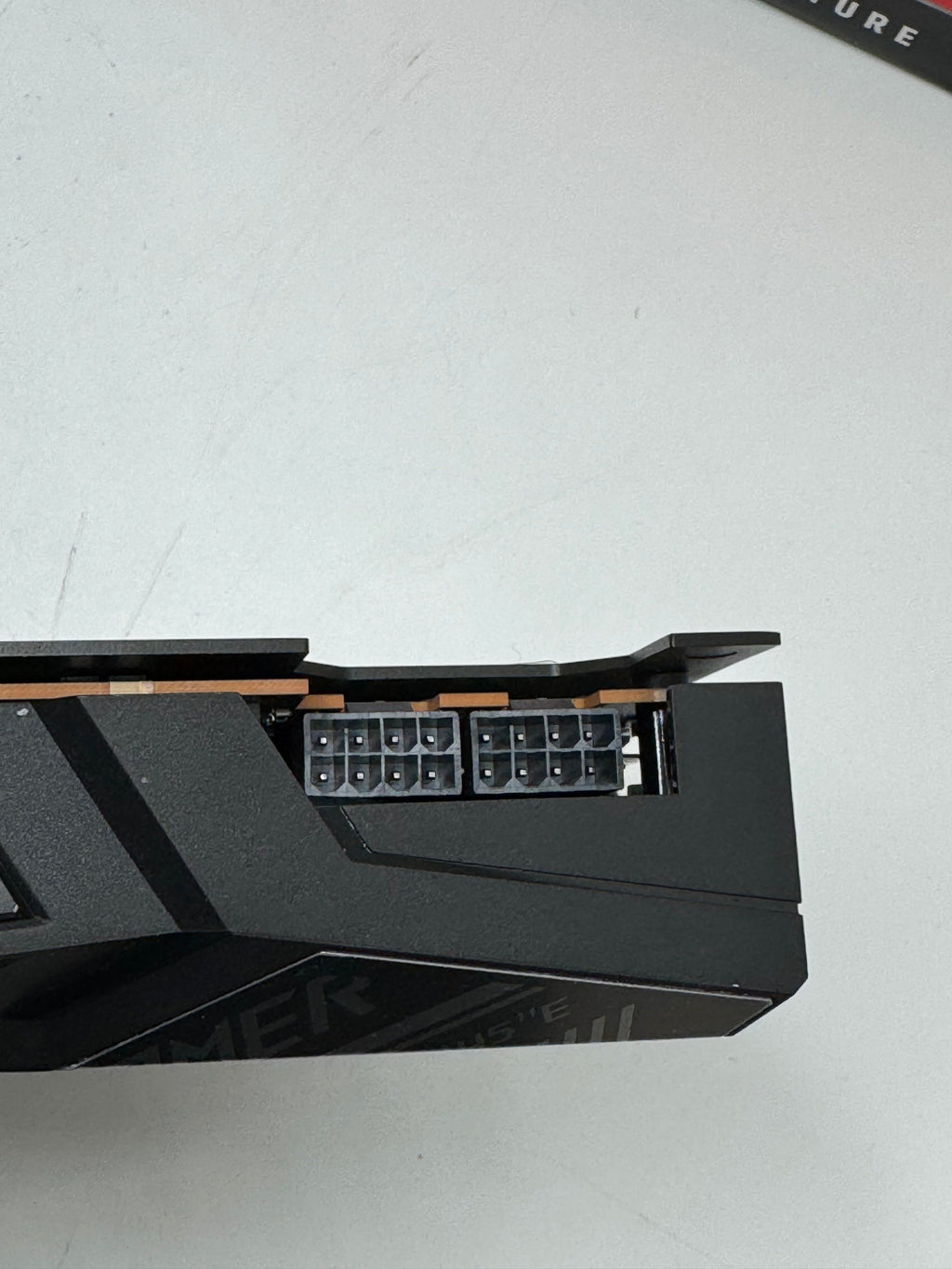

- Power Connectors
- 2x 8-pin
- Part Number
- 102-D41205
- Board Number
- 109-D412A7-00_03
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.1
- Vulkan
- 1.3
- Shader Model
- 6.7
Navi 21 GPU Notes
| Generation: Navi II Codename: Sienna Cichlid / Gaming Ray Tracing Cores: 1st Gen Infinity Cache: 1st Gen Graphics/Compute: 10.3.0 Shader ISA: GFX10.3 (gfx1030) Display Core Next: 3.0.0 Video Core Next: 3.0.0 System DMA: 5.2.0 Platform Security Processor: 11.0.7 Per SIMD32: - 10 KB Scalar Register File Per CU: - 16 KB Vector Data Cache - 64 KB Local Data Share (GCN-Mode) Per WGP: - 16 KB Scalar Data Cache / K Cache - 32 KB Instruction Cache - 128 KB Local Data Share |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
