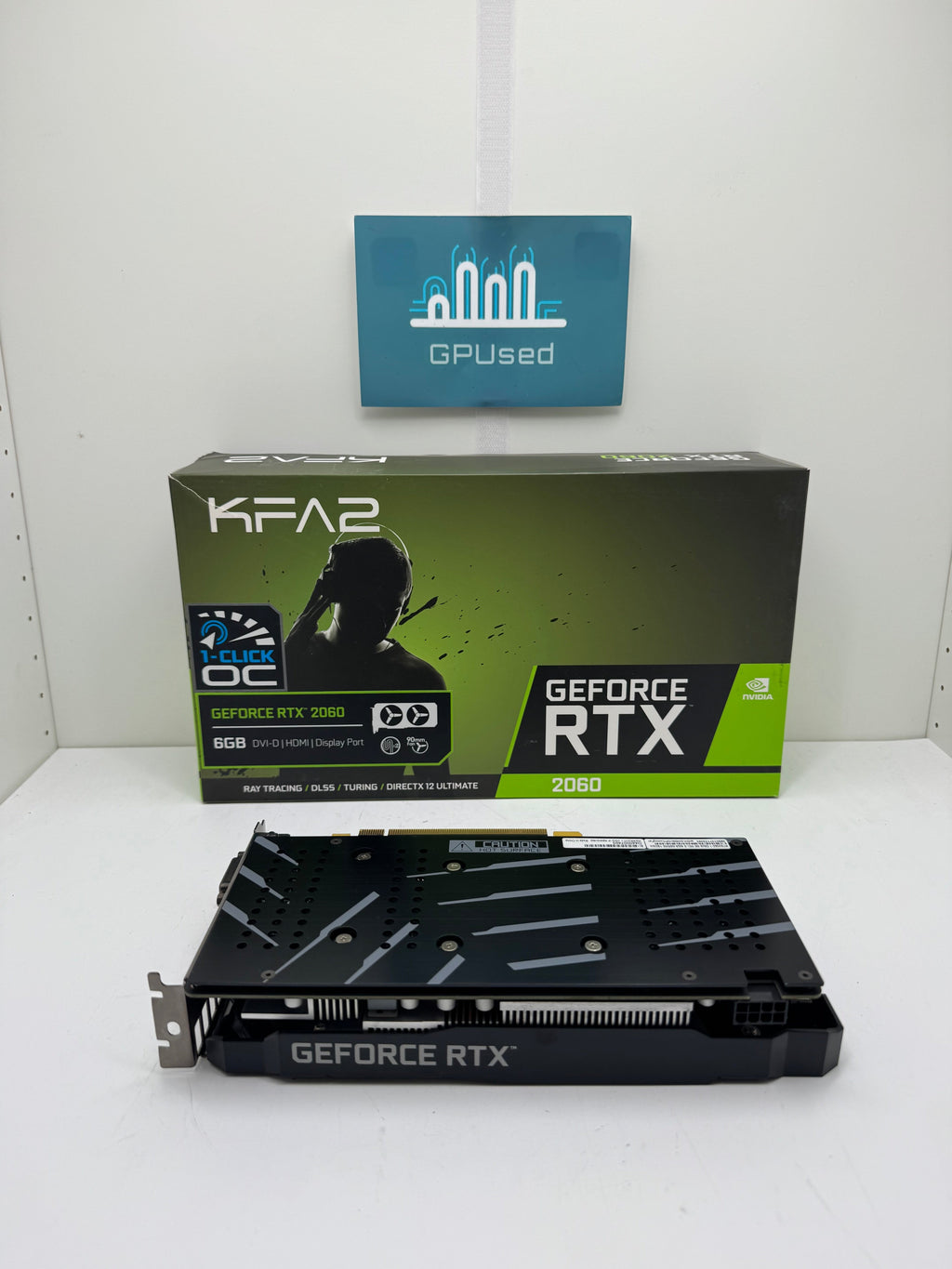

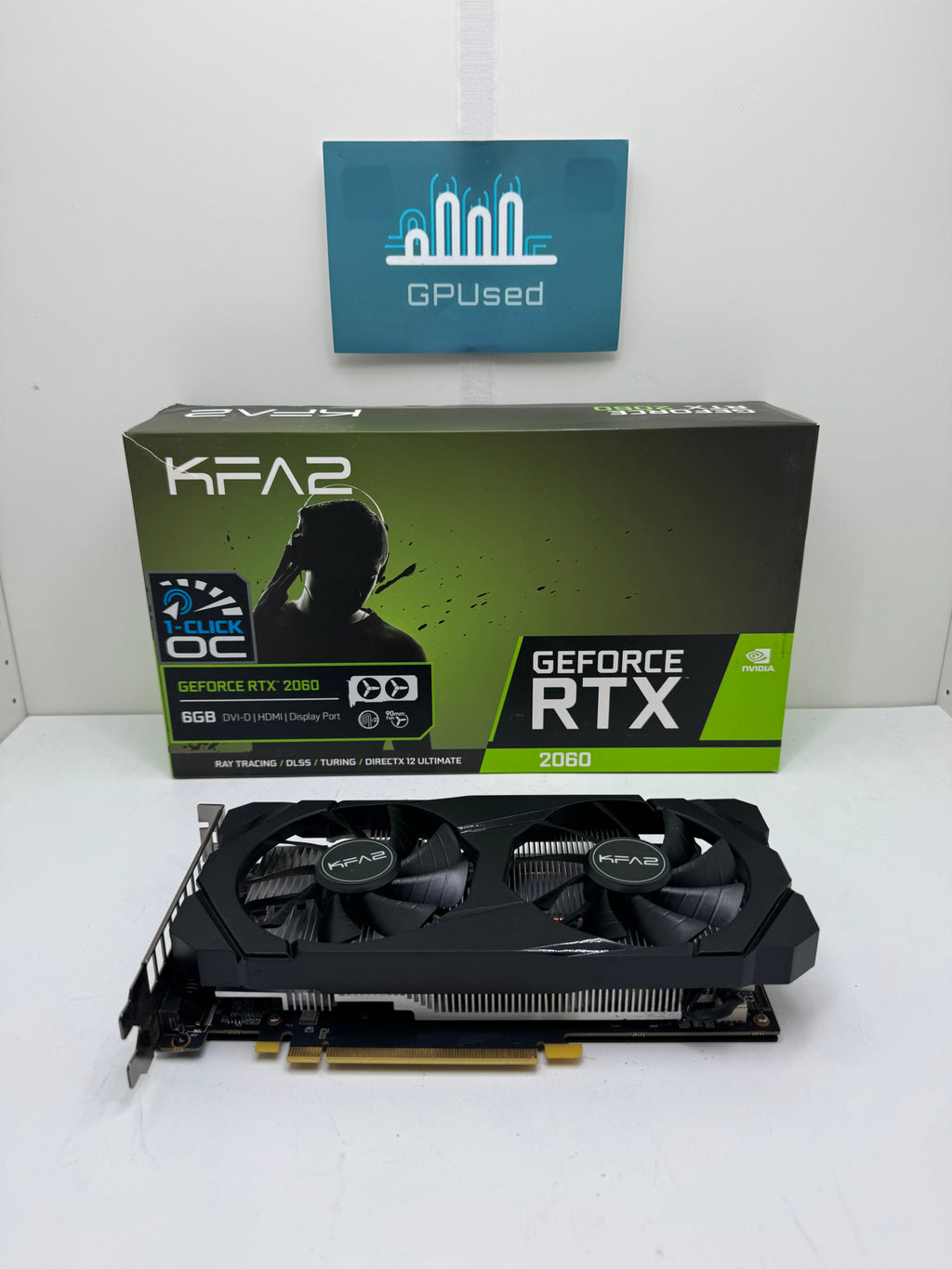

KFA2 Nvidia GeForce RTX 2060 1-Click OC 6GB GDDR6 - A - Premium Edition
KFA2 Nvidia GeForce RTX 2060 1-Click OC 6GB GDDR6 - A - Premium Edition
Product Description -
Summary - Great condition, no box. Full specifications below -
Graphics Processor
Graphics Card
- Release Date
- Jan 7th, 2019
- Generation
- GeForce 20
- Predecessor
- GeForce 10
- Successor
- GeForce 30
- Production
- Active
- Bus Interface
- PCIe 3.0 x16
Clock Speeds
- Base Clock
- 1365 MHz
- Boost Clock
- 1680 MHz
- Memory Clock
- 1750 MHz
14 Gbps effective
Memory
- Memory Size
- 6 GB
- Memory Type
- GDDR6
- Memory Bus
- 192 bit
- Bandwidth
- 336.0 GB/s
Render Config
- Shading Units
- 1920
- TMUs
- 120
- ROPs
- 48
- SM Count
- 30
- Tensor Cores
- 240
- RT Cores
- 30
- L1 Cache
- 64 KB (per SM)
- L2 Cache
- 3 MB
Theoretical Performance
- Pixel Rate
- 80.64 GPixel/s
- Texture Rate
- 201.6 GTexel/s
- FP16 (half)
- 12.90 TFLOPS (2:1)
- FP32 (float)
- 6.451 TFLOPS
- FP64 (double)
- 201.6 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
-
229 mm
226 mm9 inches
8.9 inches
- Width
-
113 mm
128 mm4.4 inches
5 inches
- Height
-
35 mm
41 mm1.4 inches
1.6 inches
- TDP
- 160 W
- Suggested PSU
- 450 W

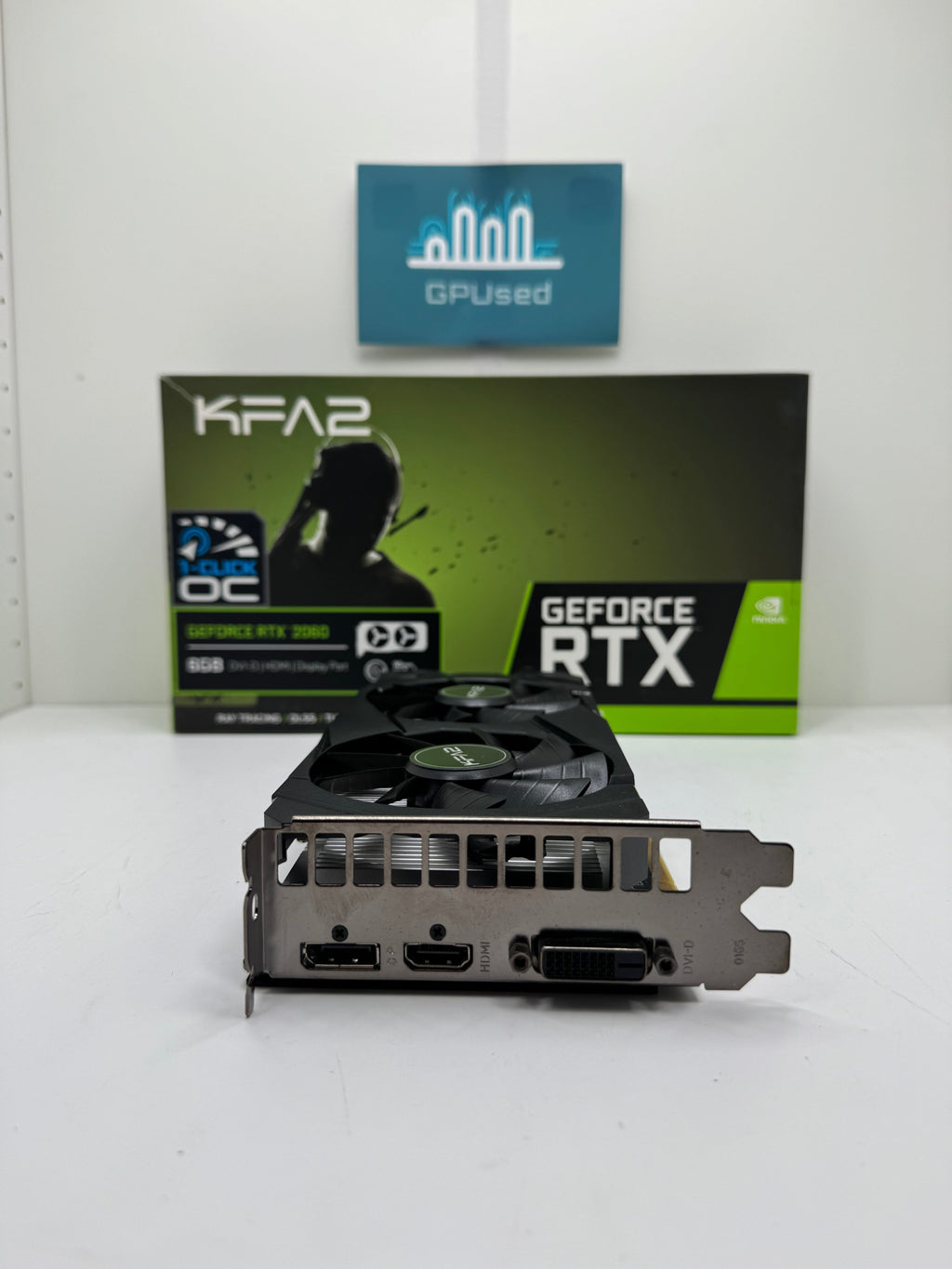

- Outputs
-
1x DVI
1x HDMI 2.0
2x DisplayPort 1.4a
1x USB Type-C
1x HDMI 2.0
3x DisplayPort 1.4a

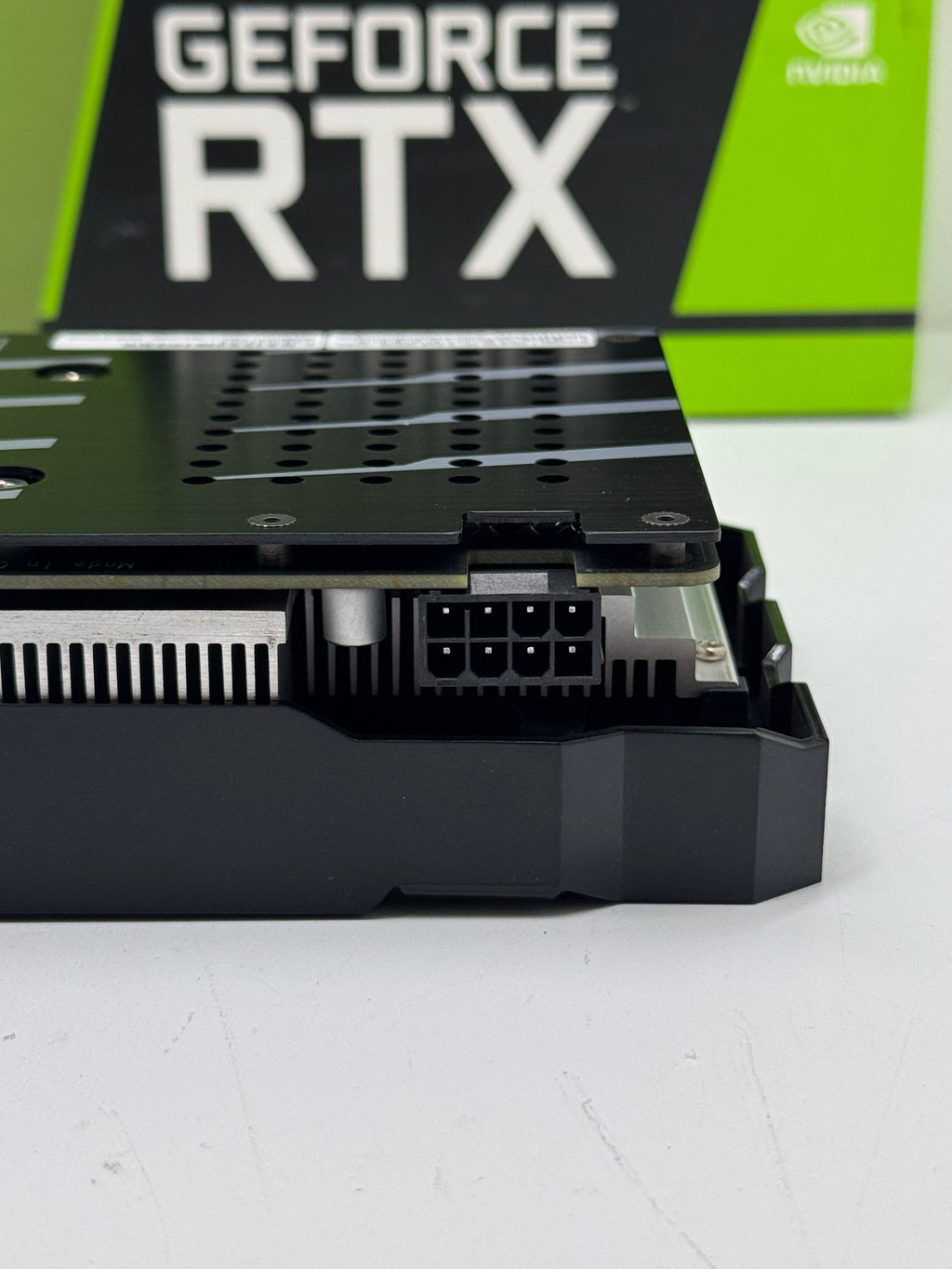

- Power Connectors
- 1x 8-pin
- Board Number
- PG160 SKU 42
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 7.5
- Shader Model
- 6.7
Card Notes
| TU106-200-KA-A1 are Normal Chips (no factory OC permitted). TU106-200A-KA-A1 are Binned Chips (factory OC permitted). |
TU106 GPU Notes
| Ray Tracing Cores: 1st Gen Tensor Cores: 2nd Gen NVENC: 7th Gen NVDEC: 4th Gen PureVideo HD: VP10 VDPAU: Feature Set J |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
Full specifications can be found at the manufacturers website.
Feel free to check out our reviews on Google and Trustpilot for added piece of mind :
GPUsed - 4.9* Reviews on Trustpilot
If you’re looking to sell a graphics card to us.
