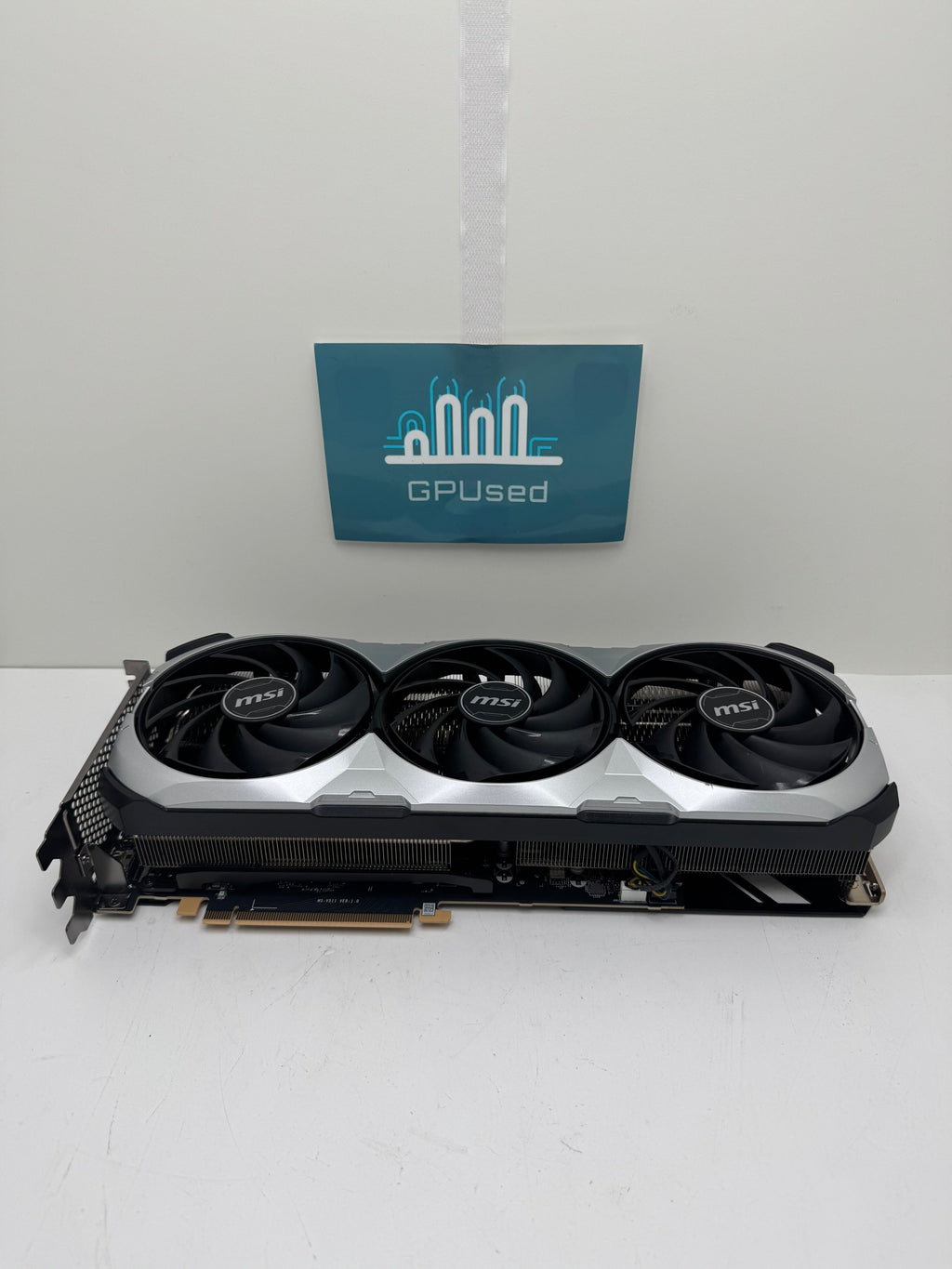

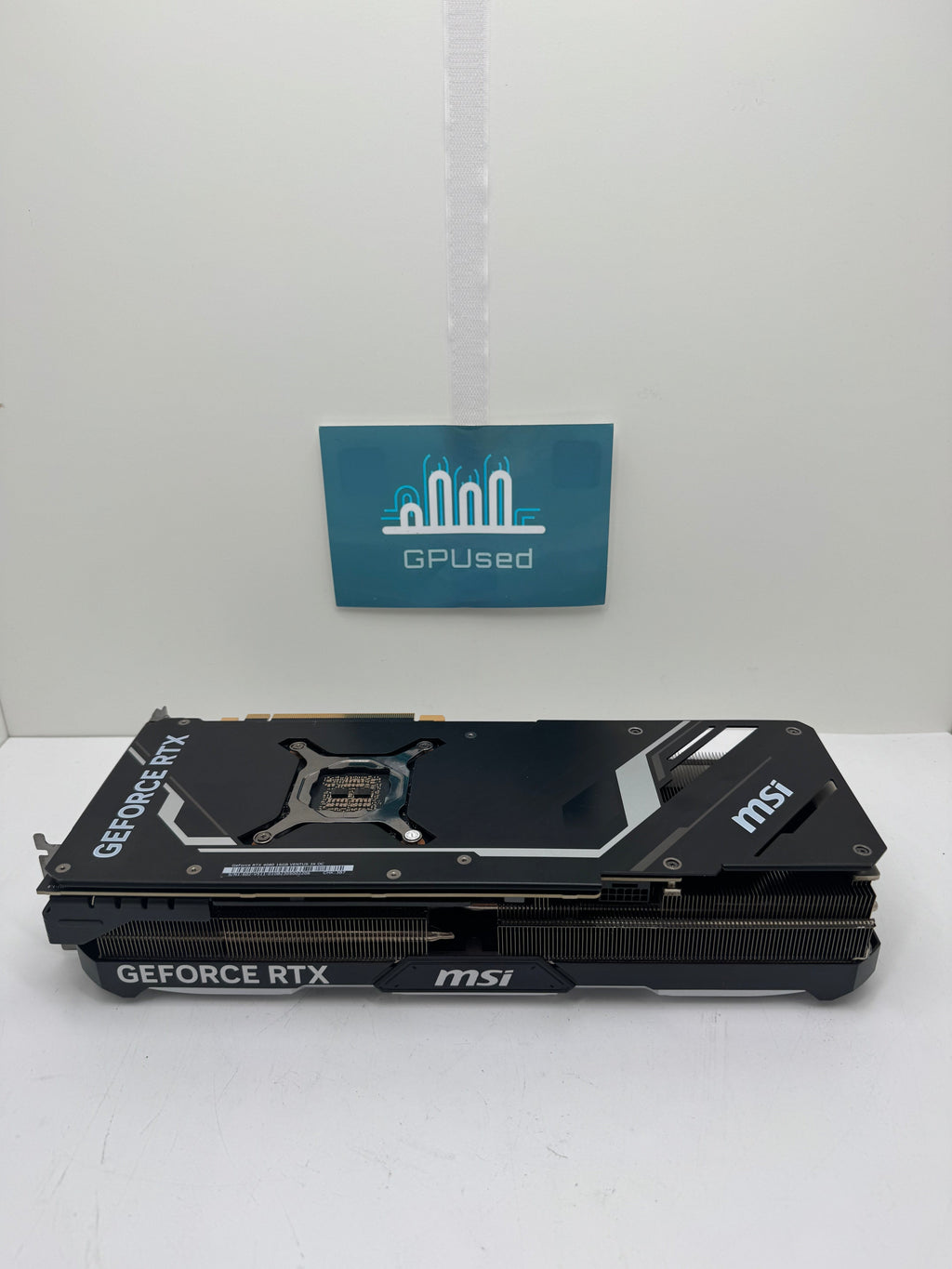

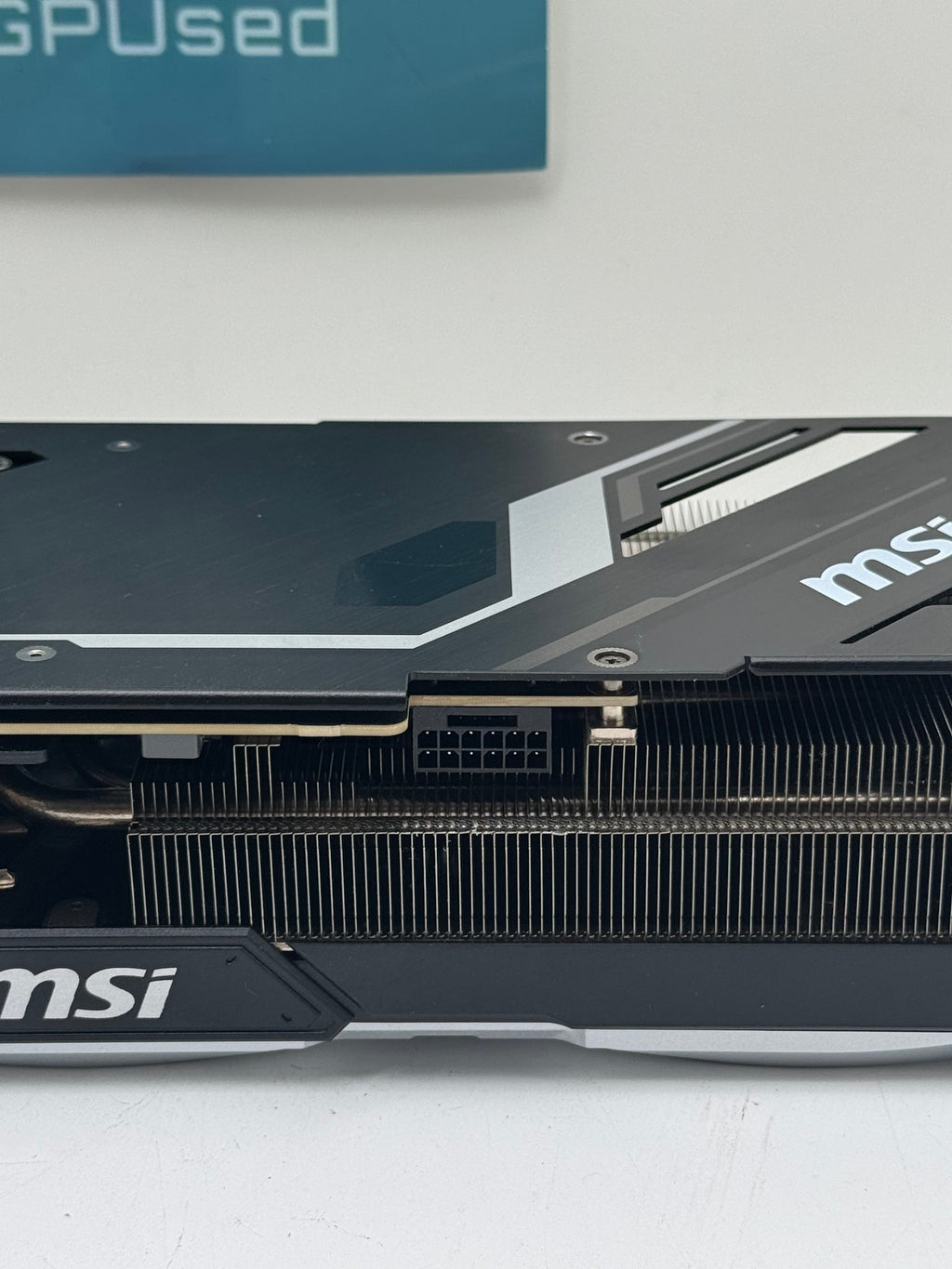

MSI Nvidia GeForce RTX 4080 Ventus 3X 16GB GDDR6X - A - Premium Edition
MSI Nvidia GeForce RTX 4080 Ventus 3X 16GB GDDR6X - A - Premium Edition
Product Description -
Summary - Great condition. Specifications below -
Graphics Processor
- GPU Name
- AD103
- GPU Variant
- AD103-300-A1
- Architecture
- Ada Lovelace
- Foundry
- TSMC
- Process Size
- 5 nm
- Transistors
- 45,900 million
- Density
- 121.1M / mm²
- Die Size
- 379 mm²
Graphics Card
- Release Date
- Sep 20th, 2022
- Availability
- Nov 16th, 2022
- Generation
- GeForce 40
- Predecessor
- GeForce 30
- Production
- Active
- Bus Interface
- PCIe 4.0 x16
Clock Speeds
- Base Clock
- 2205 MHz
- Boost Clock
-
2505 MHz
2625 MHz (+5%)
- Memory Clock
- 1400 MHz
22.4 Gbps effective
Memory
- Memory Size
- 16 GB
- Memory Type
- GDDR6X
- Memory Bus
- 256 bit
- Bandwidth
- 716.8 GB/s
Render Config
- Shading Units
- 9728
- TMUs
- 304
- ROPs
- 112
- SM Count
- 76
- Tensor Cores
- 304
- RT Cores
- 76
- L1 Cache
- 128 KB (per SM)
- L2 Cache
- 64 MB
Theoretical Performance
- Pixel Rate
-
280.6 GPixel/s
294.0 GPixel/s
- Texture Rate
-
761.5 GTexel/s
798.0 GTexel/s
- FP16 (half)
-
48.74 TFLOPS
51.07 TFLOPS (1:1)
- FP32 (float)
-
48.74 TFLOPS
51.07 TFLOPS
- FP64 (double)
-
761.5 GFLOPS
798.0 GFLOPS (1:64)
Board Design
- Slot Width
-
Triple-slot
Quad-slot
- Length
-
310 mm
336 mm12.2 inches
13.2 inches
- Width
-
140 mm
142 mm5.5 inches
5.6 inches
- Height
-
61 mm
78 mm2.4 inches
3.1 inches
- TDP
- 320 W
- Suggested PSU
- 700 W
- Outputs
- 1x HDMI 2.1
3x DisplayPort 1.4a
- Power Connectors
- 1x 16-pin
- Board Number
- PG139 SKU 360
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 8.9
- Shader Model
- 6.7
AD103 GPU Notes
| Ray Tracing Cores: 3rd Gen Tensor Cores: 4th Gen NVENC: 8th Gen NVDEC: 5th Gen PureVideo HD: VP12 VDPAU: Feature Set L |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
Full specifications can be found at the manufacturers website.
