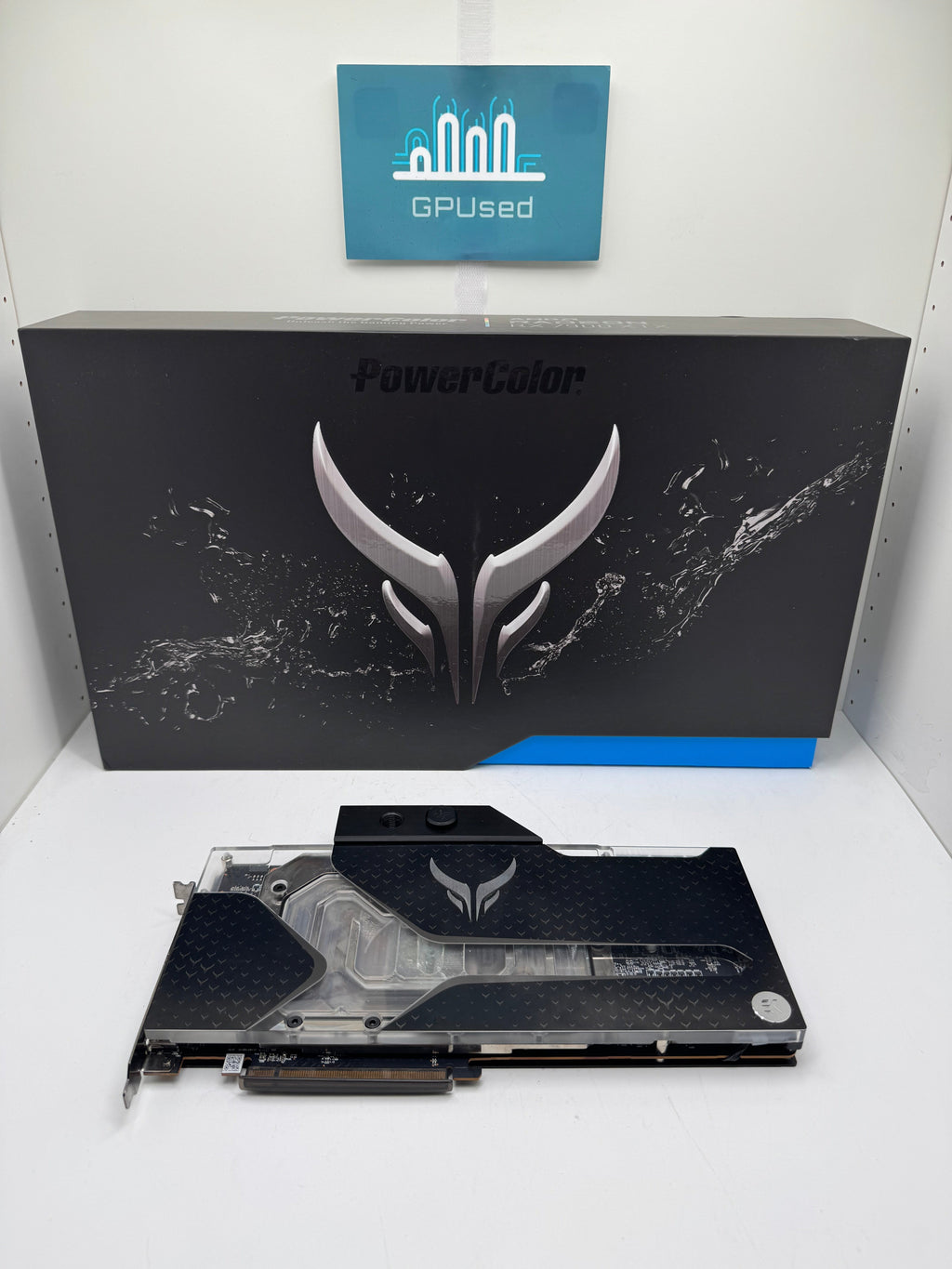

Powercolor AMD Radeon RX 7900XTX Liquid Devil 24GB GDDR6 - A - Premium Edition
Powercolor AMD Radeon RX 7900XTX Liquid Devil 24GB GDDR6 - A - Premium Edition
Product Description -
Summary - Great condition, with the original box. Slight dent to the rear panel with a worn off screw, but nothing major and temperatures remained good. Specifications below -
Graphics Processor
- GPU Name
- Navi 31
- Codename
- Plum Bonito
- GPU Variant
- Navi 31 XTX
(215-145000146)
- Architecture
- RDNA 3.0
- Foundry
- TSMC
- Process Size
- 5 nm
- MCD Process
- 6 nm
- Process Type
- N5 / N6 FinFET
- Transistors
- 57,700 million
- GCD Transistors
- 45,400 million
- MCD Transistors
- 2,050 million x6
- Density
- 109.1M / mm²
- GCD Density
- 150.2M / mm²
- MCD Density
- 54.64M / mm²
- Die Size
- 529 mm²
- GCD Die Size
- 304.35 mm²
- MCD Die Size
- 37.52 mm² x6
- Chip Package
- MCM
Graphics Card
Clock Speeds
- Base Clock
-
1855 MHz
1867 MHz (+1%)
- Shader Clock
-
2269 MHz
2453 MHz (+8%)
- Game Clock
-
2269 MHz
2453 MHz (+8%)
- Boost Clock
-
2499 MHz
2617 MHz (+5%)
- Memory Clock
- 2500 MHz
20 Gbps effective
Memory
- Memory Size
- 24 GB
- Memory Type
- GDDR6
- Memory Bus
- 384 bit
- Bandwidth
- 960.0 GB/s
Render Config
- Shading Units
- 6144
- TMUs
- 384
- ROPs
- 192
- Compute Units
- 96
- RT Cores
- 96
- L0 Cache
- 64 KB per WGP
- L1 Cache
- 256 KB per Array
- L2 Cache
- 6 MB
- L3 Cache
- 96 MB
Theoretical Performance
- Pixel Rate
-
479.8 GPixel/s
502.5 GPixel/s
- Texture Rate
-
959.6 GTexel/s
1,005 GTexel/s
- FP16 (half)
-
122.8 TFLOPS
128.6 TFLOPS (2:1)
- FP32 (float)
-
61.42 TFLOPS
64.32 TFLOPS
- FP64 (double)
-
1.919 TFLOPS
2.010 TFLOPS (1:32)
Board Design
- Slot Width
-
Dual-slot
Triple-slot
- Length
-
287 mm
330 mm11.3 inches
13 inches
- Width
-
110 mm
140 mm4.3 inches
5.5 inches
- Height
-
51 mm
58 mm2 inches
2.3 inches
- TDP
- 355 W
- Suggested PSU
- 750 W

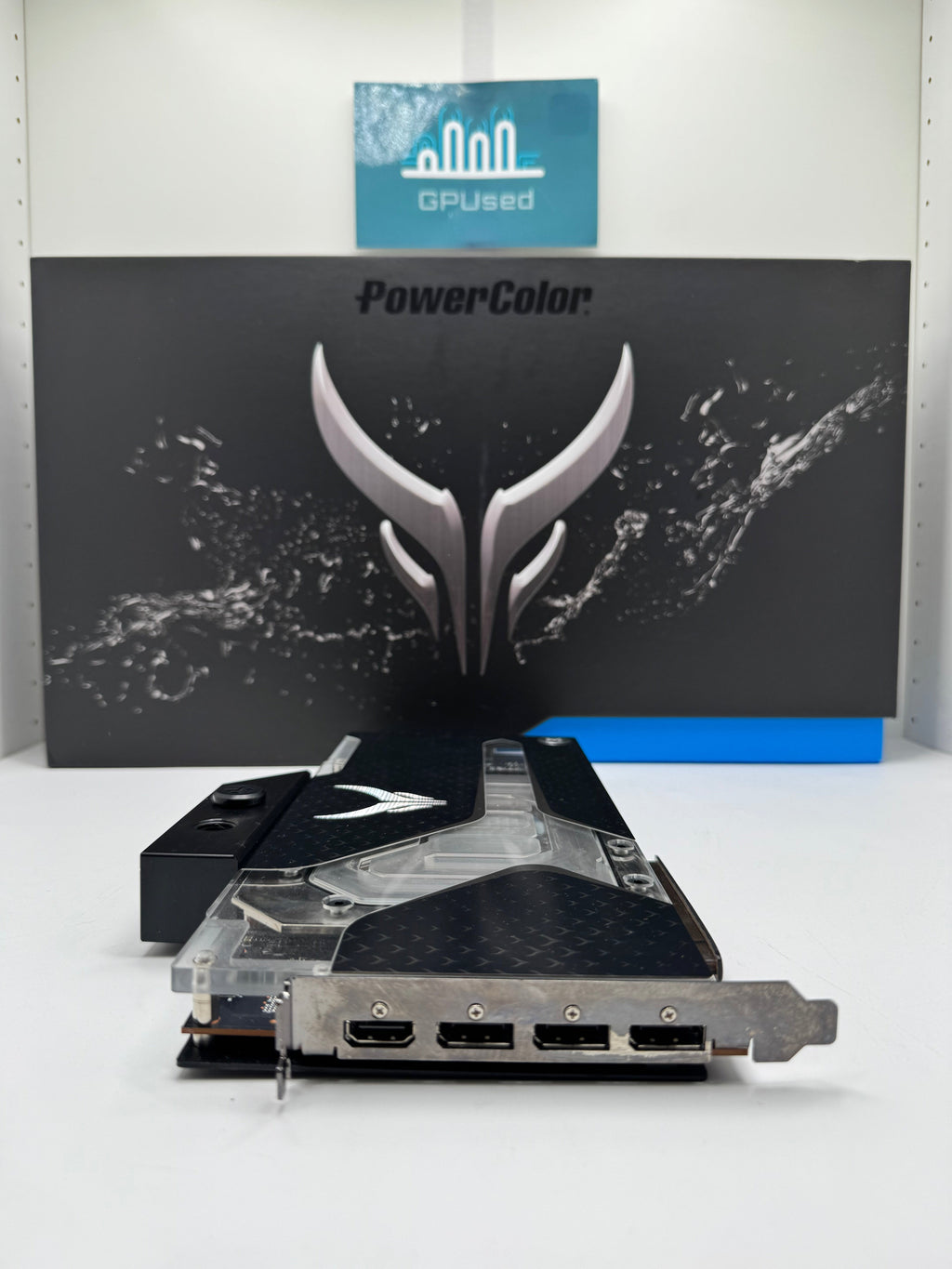

- Outputs
-
1x HDMI 2.1a
2x DisplayPort 2.1
1x USB Type-C
1x HDMI 2.1a
3x DisplayPort 2.1

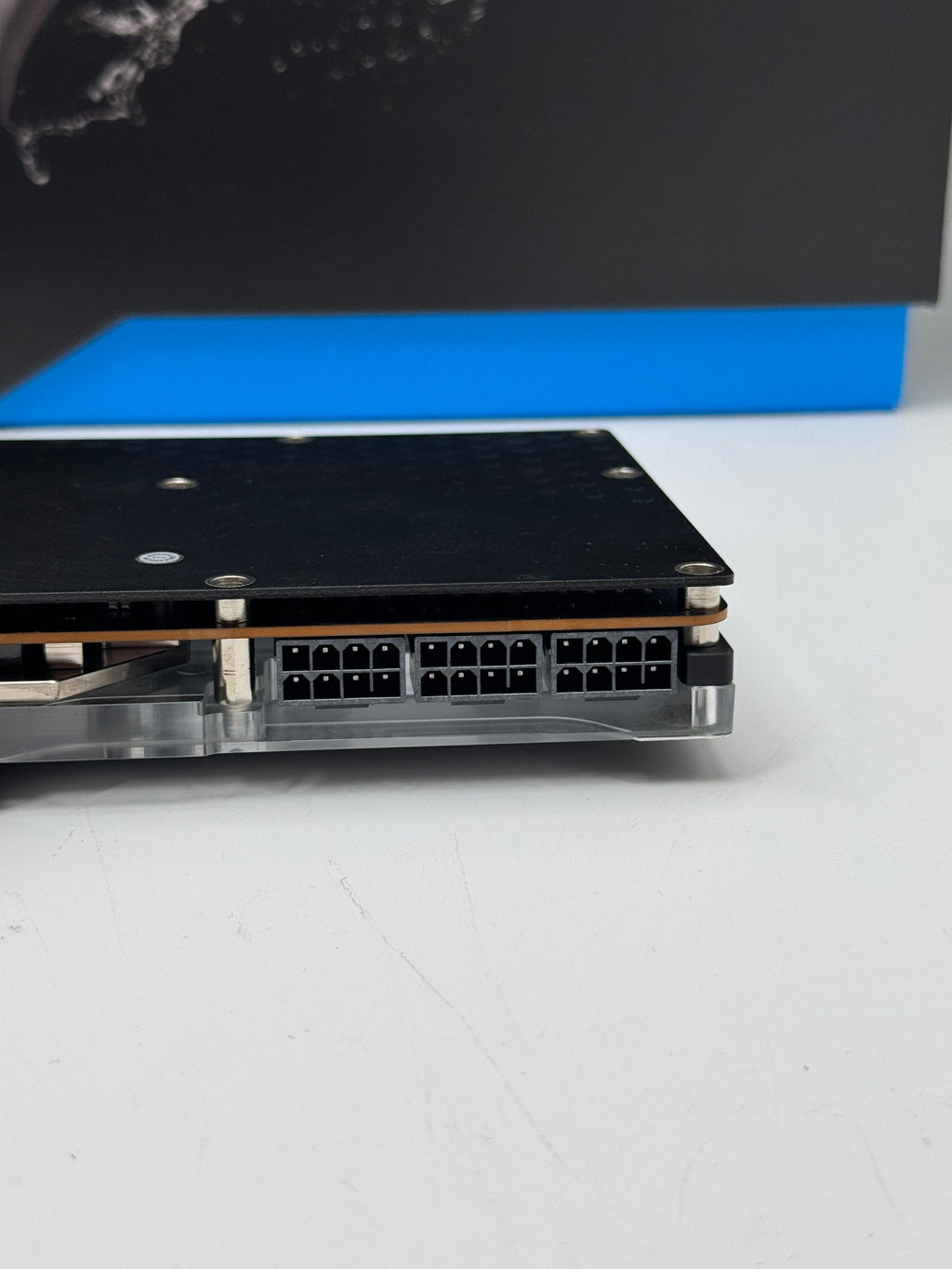

- Power Connectors
-
2x 8-pin
3x 8-pin
- Board Number
- 109-D702A7-00_02
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.2
- Vulkan
- 1.3
- Shader Model
- 6.7
Navi 31 GPU Notes
| Generation: Navi III Codename: Plum Bonito Ray Tracing Cores: 2nd Gen Infinity Cache: 2nd Gen Graphics/Compute: 11.0.0 Shader ISA: GFX11.0 (gfx1100) Display Core Next: 3.2.0 Video Core Next: 4.0.0 System DMA: 6.0.0 Per SIMD32: - 10 KB Scalar Register File Per CU: - 16 KB Vector Data Cache - 64 KB Local Data Share (GCN-Mode) Per WGP: - 16 KB Scalar Data Cache / K Cache - 32 KB Instruction Cache - 128 KB Local Data Share |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
